CAD CAM Dental Monolayer Multlayer PMMA Block

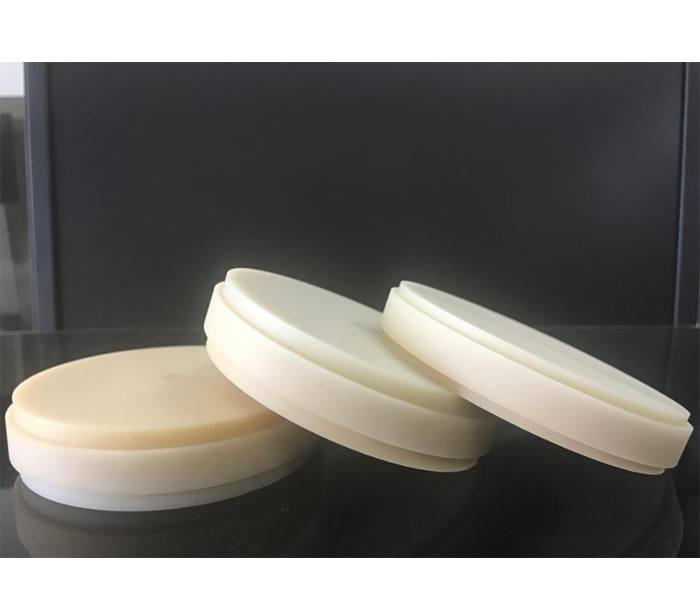

CAD CAM PMMA Discs

Main materials: polymethylmethacrylate

Name: PMMA Block, PMMA Discs, PMMA Blank, PMMA Pucks, Arylic Resin, etc

Application:

PMMA block is used for making crown & bridge that as temporary restoration in a long or short period.

Advantages:

Excellent Milling Capacity

High Color Stability

Bending resistance

Natural Fluorescence

Biocompatibility

Color & translucency

Properties of PMMA Blocks:

Modulus of Elasticity: 2,200 Mpa

Bending Strength: 100Mpa

Toughness (Charpy ): 10KJ/m2(Lzod): 1.3 KJ/m2

Tensile Strength: 75Mpa

Vickers Hardness HV (0.05/10): 135

Absorption of Water According to ISO10477: 20ug/mm3

Water Solubility: 0.8ug/mm3

Residual Monomer Content (24h at 37℃ and 30 min in air): 0.7%

Specifications:

Open System 98mm PMMA Discs:

98mm*10mm

98mm*12mm

98mm*14mm

98mm*16mm

98mm*18mm

98mm*20mm

98mm*22mm

98mm*25mm

Preshade Available colors: A0/A1/A2/A3

Multilayer avaiable colors: A1/A2/A3

Compatible with Roland, Imes Icore, VHF, Arum, etc open system

Zirkonzahn System 95mm PMMA Discs:

95mm*10mm

95mm*12mm

95mm*14mm

95mm*16mm

95mm*18mm

95mm*20mm

95mm*22mm

95mm*25mm

Preshade Available colors: A0/A1/A2/A3

Multilayer avaiable colors: A1/A2/A3

Compatible with zirkonzahn system.

Amann Girrbach System PMMA discs:

89mm*71mm*10mm

89mm*71mm*12mm

89mm*71mm*14mm

89mm*71mm*16mm

89mm*71mm*18mm

89mm*71mm*20mm

89mm*71mm*22mm

89mm*71mm*25mm

Preshade Available colors: A0/A1/A2/A3

Multilayer avaiable colors: A1/A2/A3

Compatible with zirkonzahn system.
